English Electric 8 Switch Audiophile-Grade Network Switch

Description

In the world of streaming music, there is a belief that digital signals by their nature are immune to the failings of analogue transmission – but it’s not that simple – and even the most hardened digital sceptic may be surprised at what can be achieved with a high specification Ethernet switch.

Listening to streamed music is not just about measurements and numbers. While both elements have important roles during product design and development, the real test for music lovers is how it sounds…

The 8switch by English Electric (a Chord Company brand), is an 8 port GbE Ethernet switch modified and upgraded to our specific requirements for high-performance music streaming networks.

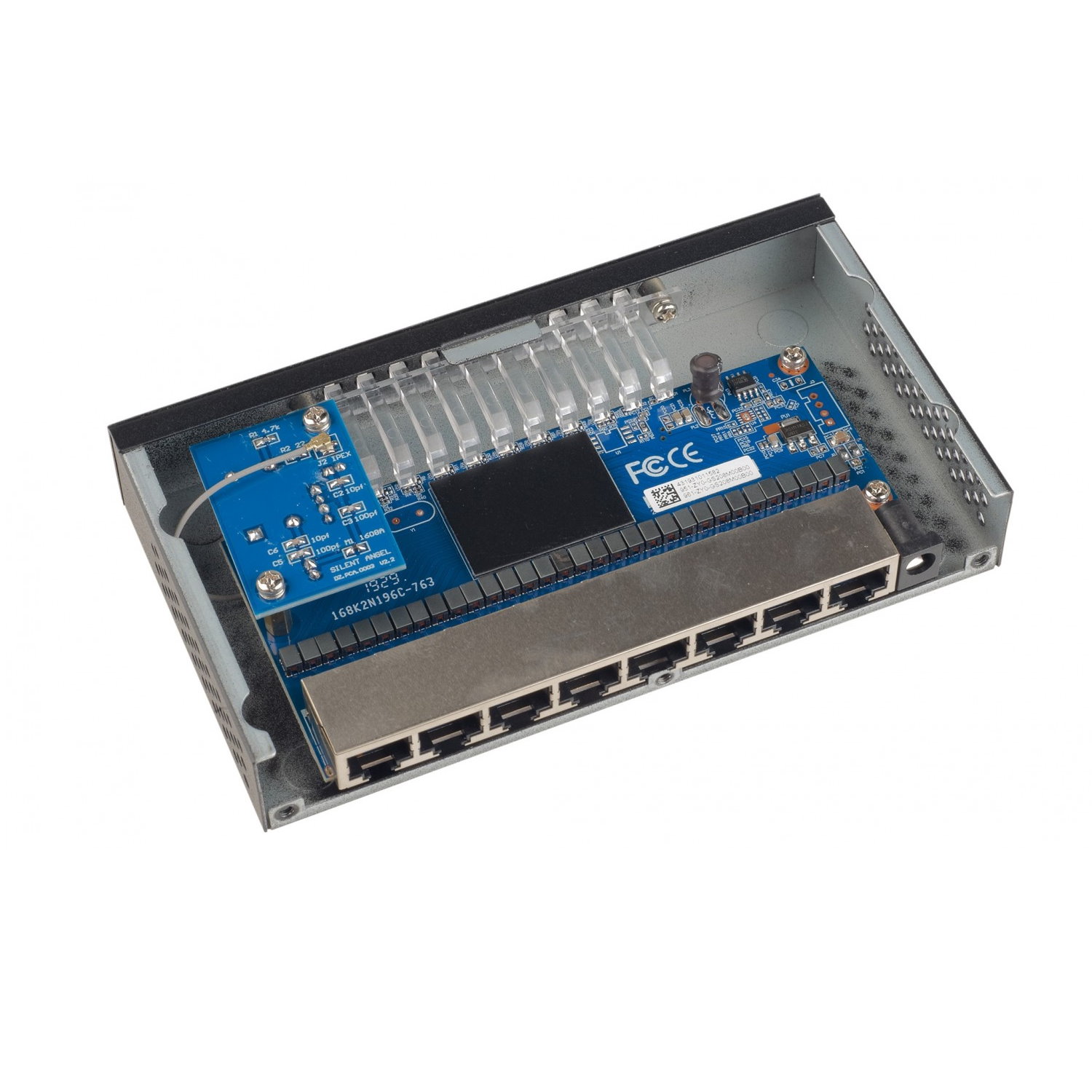

What’s inside?

Eight audio grade 100/1000 Base-T gigabit Ethernet ports make it possible to connect even the most demanding streaming setups. Significant (ie. audible) improvements can be experienced in music playback via streaming services or music stored on a NAS.

The 8switch features low and high electrical noise isolation, reducing data issues that can often be apparent during the playback of high-resolution material.

Core technologies

Powered by a customised TCXO (Temperature Compensation Crystal Oscillator), accuracy is 0.1ppm – far higher than normal crystals and higher than a normal TCXO, allowing the 8Switch to generate higher accuracy network signals, which in turn helps provide more stable music data transmission.

The power supply and clock generation circuits each have two electrical noise isolation circuits which ensure stable network signals. An EMI (Electromagnetic Interference) absorber helps to further reduce the noise from the digital circuit.

The 8Switch jitter measurements indicate an improved network signal performance of up to 90%.

Casing & Power Supply

The machined aluminium enclosure offers excellent protection from both acoustic and electrical noise.

The minimal LED display on the front panel includes power, alarm and the link status/speed for each of the 8 ports.

The AV-grade power adaptor has been designed to reduce electrical noise from AC power and prevent mains quality issues from affecting the network signals. It also boasts high power efficiency, a no-load power consumption < 0.075W and protection from short circuit, overload and over-voltage.

Switches require high speed power supplies so we could not opt for a linear power source due to their speed limitations. We set about improving the power signal by using an extremely high-quality wall supply. This clean supply permits an optimum quality network signal, driven by high-accuracy TCXO clock technology.

REVIEWS:

HiFi+: "Going from a Cisco Catalyst 2960 S1 to the 8Switch resulted in a considerable increase in high-frequency detail and better timing, the former undoubtedly begetting the latter thanks to better resolution of leading edges. Cymbals and treble harmonics clearly benefited, and the sound became more vibrant and fresher. The degree to which the upper end of the spectrum was cleaned up was quite a revelation, making the tone of voices and instruments far more appealing. It also opened up the soundstage really nicely, increasing its scale and depth." - Jason Kennedy

Accessory of the Year Award winner

Video review here - The Hans Beekhuyzen Channel on YouTube

TECHNICAL SPECIFICATIONS

Type: Streaming audio network switch

Ethernet ports: 8 audio-grade 100/1000 Base-T gigabit

Clock: Customized TCXO with accuracy rated at 0.1ppm

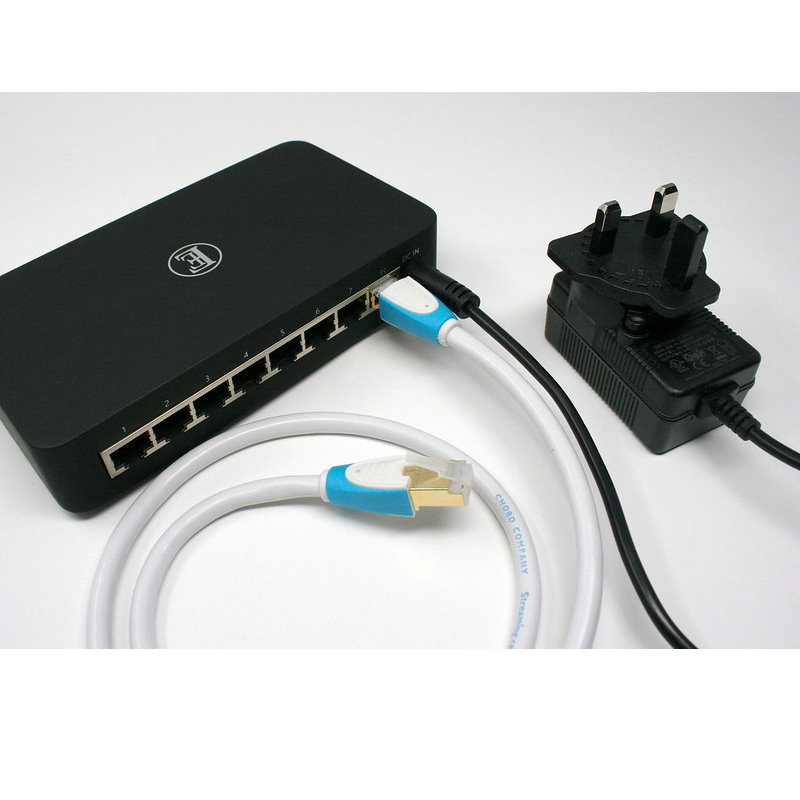

Power supply: Advanced medical-grade 5V wall-wart

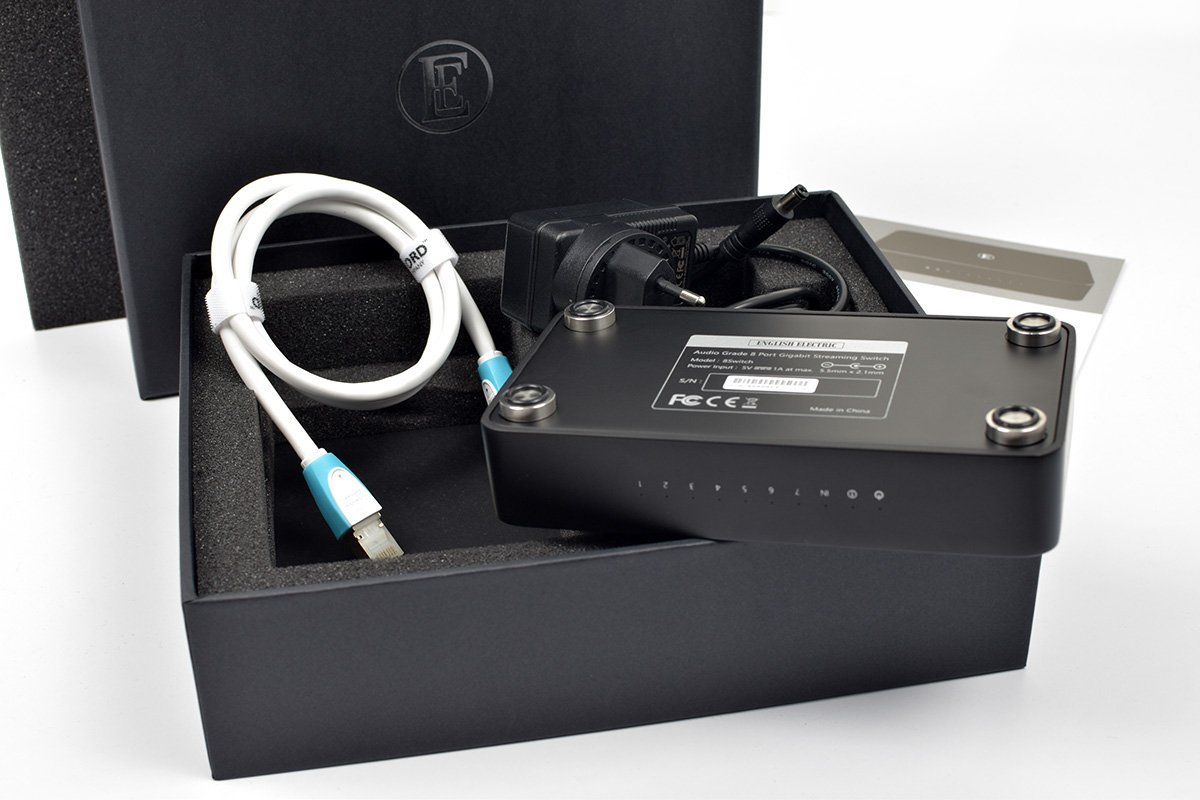

Accessories supplied: 75cm Chord Company C-Stream streaming cable

Dimensions (H×W×D): 1.5" × 6" × 3.3"

Weight: 422g

Finish: Matte black

Price: $595
