Graham Slee Reflex M Phono Preamplifier with PSU1 Power Supply

Home > Products > Analog - Phono Preamplifiers >

Description
MY TAKE:

The Graham Slee phono preamps from Great Britain offer outstanding musicality. - Galen Carol

Reflex M for Moving Magnet Phono Cartridges -

The Reflex M phono is designed for phono cartridges with outputs from 1.5 to 10mV. All moving magnet and most moving iron and high output moving coils.

This latest version introduced 2011 incorporates our ultra-linear innovations making for an even more natural and dynamic signature-free sound — the way music should be.

The Reflex M phono stage makes music like no other phono stage. Its sound stage is rock steady, having both width and depth, placing the music beyond the speakers. In a great sounding system its spatial capabilities are so lifelike it can often trick the ears into layering instruments vertically too! It uses our fast active phono stage technology combined with its symmetrical slew-rate to pull more music from the groove and relegate vinyl nasties like clicks and pops further into the background.

The Reflex M is strong on tonal perfection and low on tonal distortion, rendering each instrument and voice in its exact register, underpinned with a detailed tuneful bass.

REVIEWS:

”I had on hand an older Graham Slee phono preamp, the Era Gold Mk.V - when I'd first listened to it, in January 2004, its highly accomplished sound took me be surprise. After re-familiarizing myself with the Era Gold's sound, I listened to the Reflex M and was surprised all over again...It was fast, clean, three-dimensionally solid, way more transparent...and made for mighty inviting listening - even through the Prince of Price No Limit's megabuck system.” -

SPECIFICATIONS:

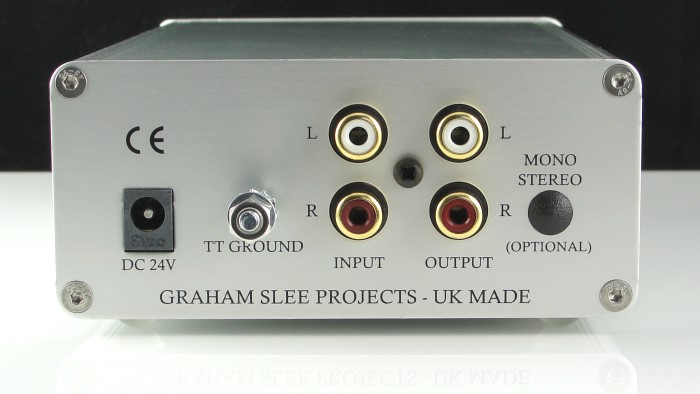

- Input and output connectors: RCA/phono sockets, hard gold plated
- Input sensitivity range: 1.5mV to 10mV
- Output range (for above inputs): 168mV to 1120mV
- Maximum input: 46mV rms
- Maximum output: 5.2V rms
- Gain: 41dB (112) at 1kHz
- Input impedance: 47k Ohms plus 100pF
- Output impedance (driving impedance): 1k Ohm (will drive 10k Ohms and above)
- Noise at output: -68dB Quasi-peak 20Hz to 20kHz
- Distortion: typically 0.01%
- RIAA accuracy: <0.3dB
- Frequency response: 20Hz - 100kHz ("flat", corrected to RIAA)
- Channel balance: 0.2dB
- Channel separation: 60dB
- Power supply: remotely powered using option of energy saving switched mode or PSU1 linear power supply
